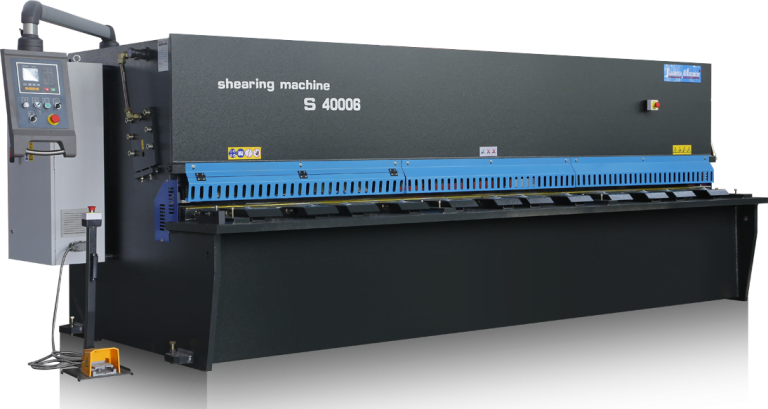

HS-8X2500 液压数控摆式剪板机
性价比较高的液压剪板机
摆式刀架结构
采用专业的摆式刀架结构，有刀片间隙微调装置。

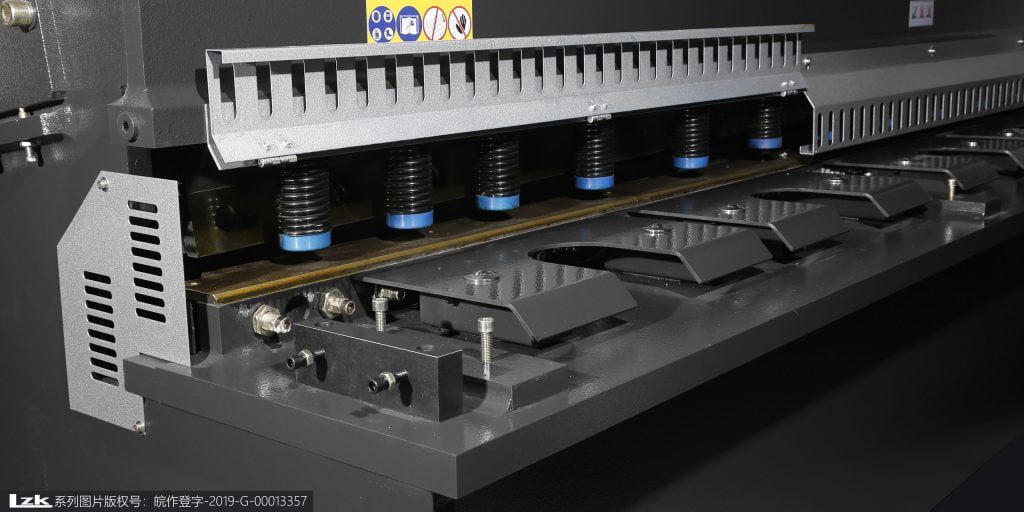

可翻转的栅格护栏
采用半透明可翻转的栅格护栏，安全剪切看得见。
专业数控系统
采用ESTUN和DELEM品牌数控系统，E21，DAC310。
可靠的电气元件
采用正品施耐德电子元件，稳定可靠质量好。
良智特制托料架
良智为用户特制的托料架，取料方便直接，滚珠托料板不划伤板材。
高精度后挡料结构
采用滚珠丝杆及直线导轨，由伺服电机驱动，后挡料定位快速精准。
刀片间隙手动调节
刀片间隙的高精度调节设计，手动调节。
优质液压系统

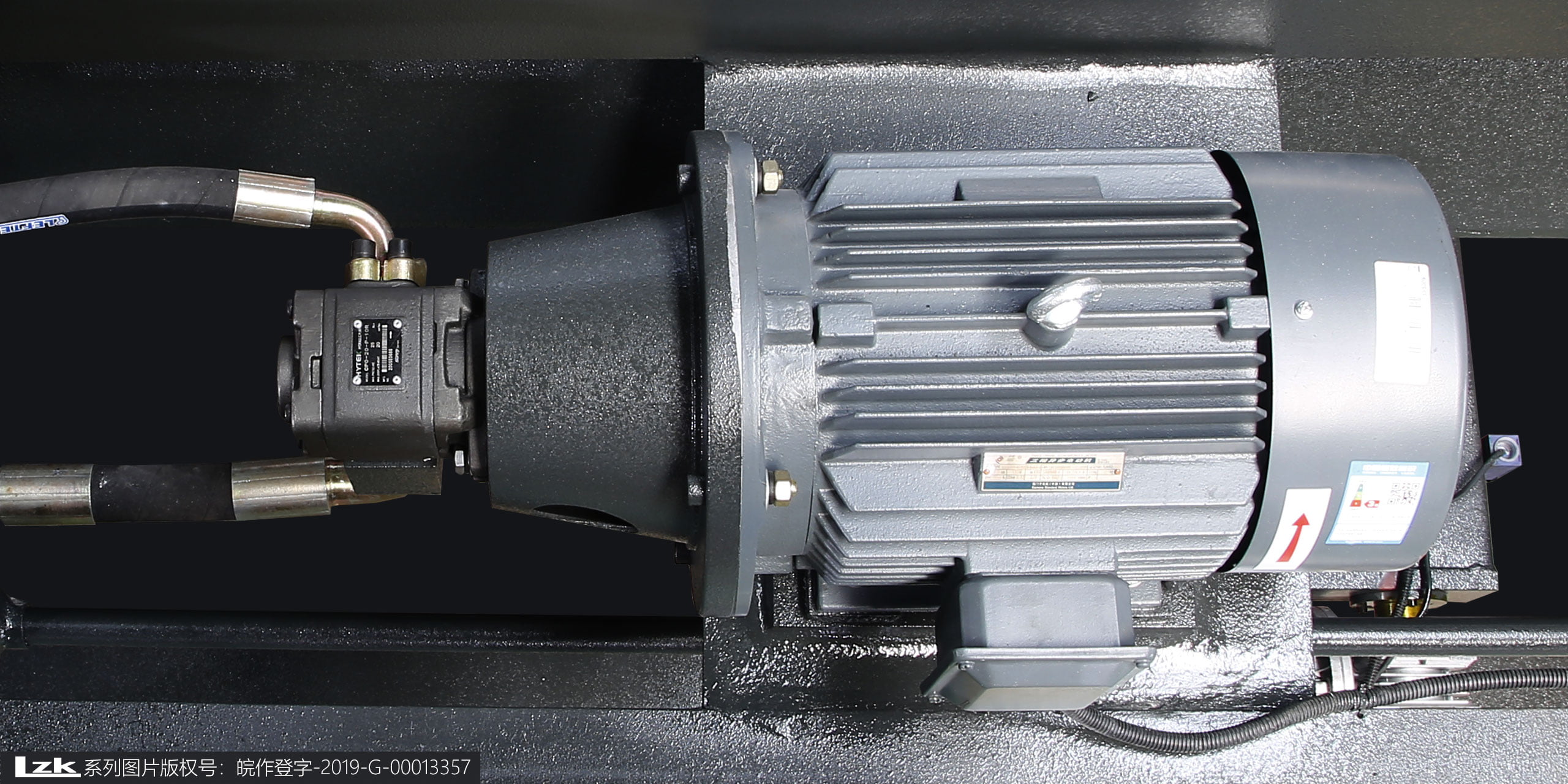

采用西门子电机，Sunny油泵及Rexroth液压阀组。
LZK | 性价比较高的液压剪板机
手动调节的刀片间隙，优质液压系统，高精度后挡料结构。

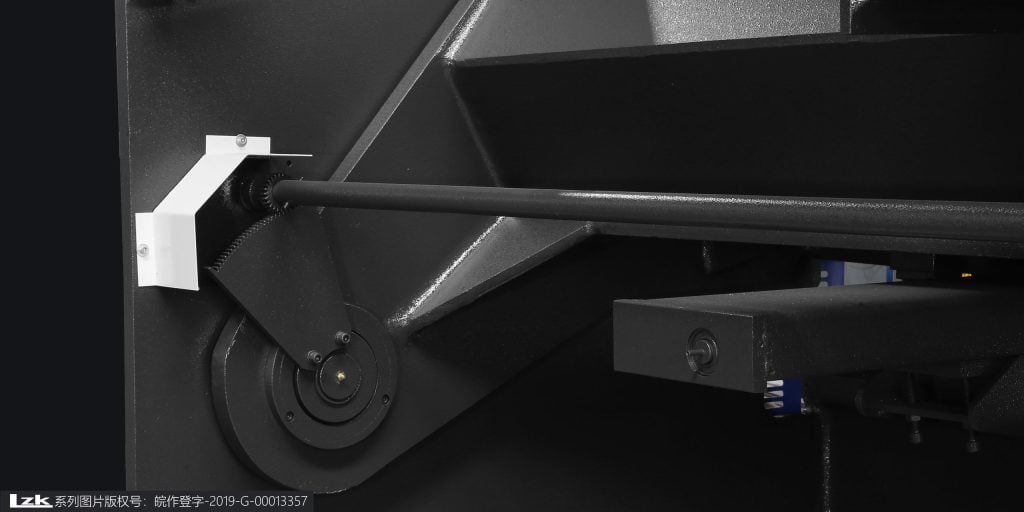

LZK | 专业摆式刀架结构，刀架强度高，消除内应力
刀架采用工装焊接工艺，经过回火处理消除内应力，强度高，手动调切刀片间隙。

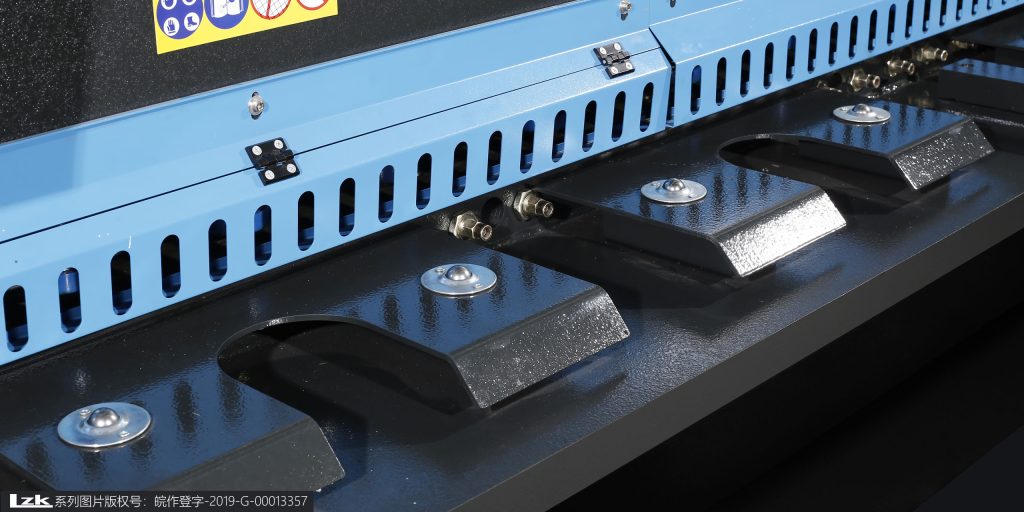

LZK | 良智特制托料架
良智为用户特制的托料架，送取料方便直接，滚珠托料板不划伤板材。

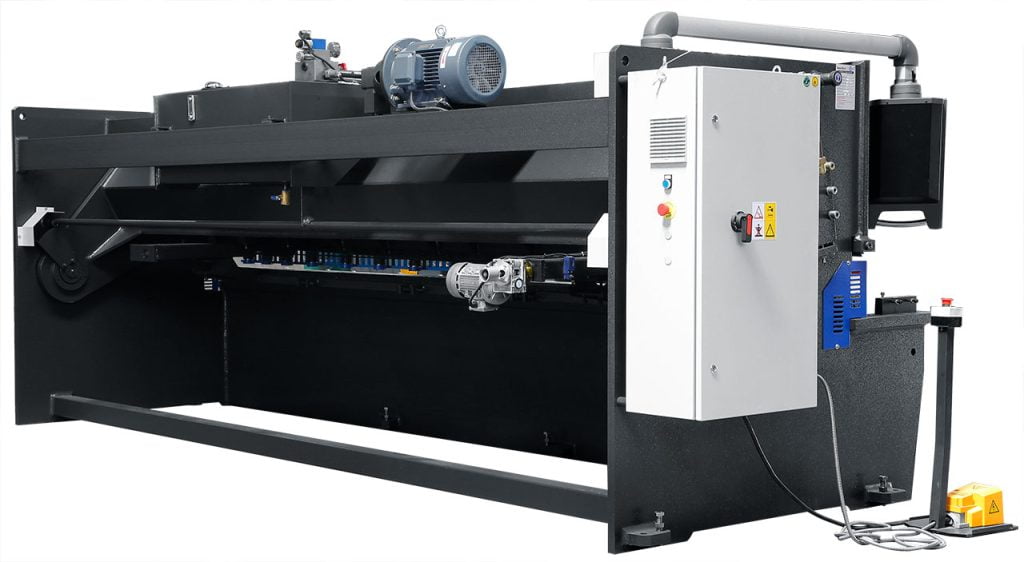

LZK | 机器背面
| 型号 | 最大剪切厚度 | 材料屈服强度 | 最大剪切长度 | 剪切角度 | 后挡料行程 | 剪切速度 | 主电机功率 | 长*宽*高(mm) | 重量 |
|---|---|---|---|---|---|---|---|---|---|
| QC12Y-4*2500 | 4mm | ≤450kN/cm | 2500mm | 1°30' | 20~600mm | 16Times/min | 5.5kW | 3040*1610*1620 | 3800Kg |
| QC12Y-4*3200 | 4mm | ≤450kN/cm | 3200mm | 1°30' | 20~600mm | 14Times/min | 5.5kW | 3840*1610*1620 | 5000Kg |
| QC12Y-4*4000 | 4mm | ≤450kN/cm | 4000mm | 1°30' | 20~600mm | 10Times/min | 5.5kW | 4600*1700*1700 | 6500Kg |
| QC12Y-4*6000 | 4mm | ≤450kN/cm | 6000mm | 1°30' | 20~600mm | 8Times/min | 7.5kW | 6460*2100*3200 | 11000Kg |
| QC12Y-6*2500 | 6mm | ≤450kN/cm | 2500mm | 1°30' | 20~600mm | 14Times/min | 7.5kW | 3040*1610*1620 | 5000Kg |
| QC12Y-6*3200 | 6mm | ≤450kN/cm | 3200mm | 1°30' | 20~600mm | 12Times/min | 7.5KW | 3840*1610*1620 | 6000Kg |
| QC12Y-6*4000 | 6mm | ≤450kN/cm | 4000mm | 1°30' | 20~600mm | 8Times/min | 7.5KW | 4620*1750*1700 | 8200Kg |
| QC12Y-6*5000 | 6mm | ≤450kN/cm | 5000mm | 1°30' | 20~600mm | 6Times/min | 11KW | 5400*1800*1900 | 10500Kg |
| QC12Y-6*6000 | 6mm | ≤450kN/cm | 6000mm | 1°30' | 20~600mm | 5Times/min | 11KW | 6480*2100*2300 | 16500Kg |
| QC12Y-8*2500 | 8mm | ≤450kN/cm | 2500mm | 1°30' | 20~600mm | 10Times/min | 11KW | 3040*1700*1700 | 6000Kg |
| QC12Y-8*3200 | 8mm | ≤450kN/cm | 3200mm | 1°30' | 20~600mm | 8Times/min | 11KW | 3860*1700*1700 | 7200Kg |
| QC12Y-8*4000 | 8mm | ≤450kN/cm | 4000mm | 1°30' | 20~600mm | 8Times/min | 11KW | 4640*1700*1700 | 8800Kg |
| QC12Y-8*5000 | 8mm | ≤450kN/cm | 5000mm | 1°30' | 20~600mm | 8Times/min | 11KW | 5400*2100*2000 | 11500Kg |
| QC12Y-8*6000 | 8mm | ≤450kN/cm | 6000mm | 1°30' | 20~600mm | 8Times/min | 11KW | 6480*2100*2350 | 18000Kg |
| QC12Y-10*2500 | 10mm | ≤450kN/cm | 2500mm | 2° | 20~600mm | 9Times/min | 11KW | 3040*1700*1700 | 7300Kg |
| QC12Y-10*3200 | 10mm | ≤450kN/cm | 3200mm | 2° | 20~600mm | 9Times/min | 11KW | 3860*1700*1700 | 8000Kg |
| QC12Y-10*4000 | 10mm | ≤450kN/cm | 4000mm | 2° | 20~600mm | 8Times/min | 11KW | 4650*2100*2000 | 12050Kg |
| QC12Y-10*6000 | 10mm | ≤450kN/cm | 6000mm | 2° | 20~1000mm | 5Times/min | 15KW | 6500*2100*2300 | 24000Kg |
| QC12Y-12*2500 | 12mm | ≤450kN/cm | 2500mm | 1°40' | 20~600mm | 9Times/min | 18.5KW | 3140*2150*2000 | 9000Kg |
| QC12Y-12*3200 | 12mm | ≤450kN/cm | 3200mm | 1°40' | 20~600mm | 9Times/min | 18.5KW | 3880*2150*2000 | 10800Kg |
| QC12Y-12*4000 | 12mm | ≤450kN/cm | 4000mm | 1°40' | 20~1000mm | 8Times/min | 18.5KW | 4680*2150*2000 | 13000Kg |
| QC12Y-12*5000 | 12mm | ≤450kN/cm | 5000mm | 2° | 20~1000mm | 6Times/min | 18.5KW | 5900*2150*2000 | 16000Kg |
| QC12Y-12*6000 | 12mm | ≤450kN/cm | 6000mm | 2° | 20~1000mm | 5Times/min | 18.5KW | 6900*2600*2700 | 29500Kg |
| QC12Y-12*8000 | 12mm | ≤450kN/cm | 8000mm | 2° | 20~1000mm | 5Times/min | 18.5KW | 9000*3500*3500 | 46500Kg |
| QC12Y-16*2500 | 16mm | ≤450kN/cm | 2500mm | 2°30' | 20~600mm | 9Times/min | 22KW | 3140*2150*2000 | 11000Kg |
| QC12Y-16*3200 | 16mm | ≤450kN/cm | 3200mm | 2°30' | 20~600mm | 8Times/min | 22KW | 3880*2150*2000 | 13000Kg |
| QC12Y-16*4000 | 16mm | ≤450kN/cm | 4000mm | 2°30' | 20~1000mm | 8Times/min | 22KW | 4650*2150*2200 | 16300Kg |
| QC12Y-16*5000 | 16mm | ≤450kN/cm | 5000mm | 2°30' | 20~1000mm | 6Times/min | 22KW | 5900*2600*2700 | 20000Kg |
| QC12Y-16*6000 | 16mm | ≤450kN/cm | 6000mm | 2°30' | 20~1000mm | 5Times/min | 22KW | 6900*2700*2700 | 36000Kg |
| QC12Y-16*8000 | 16mm | ≤450kN/cm | 8000mm | 2°30' | 20~1000mm | 5Times/min | 22KW | 9000*3500*3500 | 75000Kg |
| QC12Y-20*2500 | 20mm | ≤450kN/cm | 2500mm | 3° | 20~1000mm | 8Times/min | 22KW | 3440*2300*2500 | 15800Kg |
| QC12Y-20*3200 | 20mm | ≤450kN/cm | 3200mm | 3° | 20~1000mm | 8Times/min | 22KW | 4150*2350*2700 | 18500Kg |
| QC12Y-20*4000 | 20mm | ≤450kN/cm | 4000mm | 3° | 20~1000mm | 5Times/min | 22KW | 4850*2600*2700 | 21500Kg |
| QC12Y-20*6000 | 20mm | ≤450kN/cm | 6000mm | 3° | 20~1000mm | 4Times/min | 30KW | 6700*3000*3000 | 47000Kg |
| QC12Y-25*2500 | 25mm | ≤450kN/cm | 2500mm | 3° | 20~1000mm | 8Times/min | 37KW | 3200*2700*2900 | 19000Kg |
| QC12Y-25*3200 | 25mm | ≤450kN/cm | 3200mm | 3° | 20~1000mm | 5Times/min | 37KW | 4200*2700*2900 | 23000Kg |
| QC12Y-30*2500 | 30mm | ≤450kN/cm | 2500mm | 3° | 20~1000mm | 4Times/min | 37KW | 3300*2900*3000 | 23500Kg |
| QC12Y-30*3200 | 30mm | ≤450kN/cm | 3200mm | 3°30' | 20~1000mm | 4Times/min | 40KW | 4200*2900*3200 | 26000Kg |
| QC12Y-40*2500 | 40mm | ≤450kN/cm | 2500mm | 4° | 20~1000mm | 3Times/min | 55KW | 3200*3300*3000 | 38000Kg |
| QC12Y-40*3200 | 40mm | ≤450kN/cm | 2500mm | 4° | 1000mm | 3Times/min | 55KW | 4300*3300*3200 | 49000Kg |
| 可选型号 | 生产厂家 | 备注 | |
|---|---|---|---|
| 数控系统 | ●E21s ●E200P ●DAC310 | Delem ESTUN | |
| 液压系统 | ●主阀 | Rexroth 力士乐 | |
| 后挡料 | ●AC减速电机 ●伺服电机 | LZK | |
| 油泵 | ●单级油泵 | Sunny | |
| 主动力系统 | ●AC电机 | 西门子 NW | |
| 前托料 | ●LZK特制托料架 | LZK | |
| 安全防护 | ●后护栏+后光幕保护 | LZK | |
| 后托料 | ●气动托料 | LZK | |
| 刀片间隙 | ●手动 ●数控 | LZK | |
| 电气 | ●施耐德继电器 | 施耐德 | 开门断电保护 |
| 脚踏开关 | ●韩国凯昆立式开关 | 韩国凯昆 | |
| 深喉口 | ●选配 | LZK | |
| 散热器 | ●液压油散热器 | LZK |
